Parameter calibration#

The previous tutorial, Automatic differentiation, showed how to read the gradient of a NEML2 model’s output with respect to its parameters. That gradient is the only ingredient an off-the-shelf torch.optim optimizer needs. This tutorial closes the loop: define a loss against observations, step a real optimizer, and watch the parameters converge back to their true values.

Problem setup#

We calibrate the elastic moduli of a linear isotropic material from strain/stress observations. The model is parameterized by Young’s modulus \(E\) and Poisson’s ratio \(\nu\):

%%writefile input.i
[Models]
  [elasticity]
    type = LinearIsotropicElasticity
    coefficient_types = 'YOUNGS_MODULUS POISSONS_RATIO'
    coefficients = '100e3 0.30'
  []
[]

Writing input.i

The starting guess in the file (\(E = 100\,000\) MPa, \(\nu = 0.30\)) is deliberately far from the “true” values we’ll synthesize the data from — that’s the gap the optimizer has to close.

Synthetic observations#

Calibrating against synthetic data — where the answer is known by construction — is the standard way to debug a calibration pipeline before we point it at a real experiment. We load the same input twice: once as the truth model (with the parameters fixed to the target values), once as the trainee model (with the perturbed starting guess from the input file).

import torch
import neml2
from neml2.types import SR2

torch.set_default_dtype(torch.float64)
torch.manual_seed(0)

# Ground-truth parameters
E_true = 200e3  # MPa
nu_true = 0.31

truth = neml2.load_model("input.i", "elasticity")
with torch.no_grad():
    truth.E.data.fill_(E_true)
    truth.nu.data.fill_(nu_true)

# 32 random strain samples at the 1% level
N = 32
strain_obs = SR2(0.01 * torch.randn(N, 6))

with torch.no_grad():
    stress_obs = truth(strain_obs)

print("observation shape:", stress_obs.data.shape)

observation shape: torch.Size([32, 6])

The mutation pattern (truth.E.data.fill_(...) inside torch.no_grad()) is the in-place version covered in Model parameters — it keeps the same nn.Parameter slot. The trainee model, loaded next, gets a fresh set of parameters at the file’s defaults.

Loss function#

The mean squared error between predicted and observed stress is a standard choice — it’s smooth, convex in the prediction, and easy to differentiate:

\[ l(E, \nu) = \frac{1}{6N} \sum_{i=1}^{N} \big\|\boldsymbol{\sigma}_i^{\mathrm{pred}}(E, \nu) - \boldsymbol{\sigma}_i^{\mathrm{obs}}\big\|^2. \]

In code:

model = neml2.load_model("input.i", "elasticity")
print(f"initial guess: E = {model.E.data.item():.3e},  nu = {model.nu.data.item():.3f}")

with torch.no_grad():
    initial_loss = ((model(strain_obs).data - stress_obs.data) ** 2).mean()
print(f"initial loss = {initial_loss.item():.3e}")

initial guess: E = 1.000e+05,  nu = 0.300
initial loss = 1.342e+06

The initial loss is large because the trainee’s \(E\) is wrong by a factor of two.

Optimizer choice and conditioning#

NEML2 parameters are leaf nn.Parameter tensors, so any optimizer in torch.optim works. We use torch.optim.Adam here.

There is one subtlety. \(E\) lives at \(\mathcal{O}(10^5)\) and \(\nu\) at \(\mathcal{O}(0.3)\) — almost six orders of magnitude apart. A single scalar learning rate that’s large enough to move \(E\) will catapult \(\nu\) out of its valid range, and a learning rate small enough for \(\nu\) leaves \(E\) effectively frozen. The fix is to give each parameter its own learning rate via torch.optim’s param-group mechanism, roughly scaled to the parameter’s magnitude:

optimizer = torch.optim.Adam(
    [
        {"params": [model.E.data], "lr": 5e2},  # 0.5% of E
        {"params": [model.nu.data], "lr": 2e-3},  # 0.7% of nu
    ]
)

Tip

This is the calibration-specific face of a general truth in gradient-based optimization: parameters of wildly different magnitudes need either per-parameter step sizes or an explicit change of variables (e.g. optimizing \(\log E\) instead of \(E\)). Adam’s moment-based normalization helps but does not fully remove the sensitivity.

Calibration loop#

The loop is the standard PyTorch idiom: zero the gradients, forward, compute the loss, backward, step. We record the loss, the parameter values, and the gradient norm at every iteration so we can diagnose afterwards.

n_iter = 1000
loss_hist, E_hist, nu_hist, gradnorm_hist = [], [], [], []

for i in range(n_iter):
    optimizer.zero_grad()
    stress_pred = model(strain_obs)
    loss = ((stress_pred.data - stress_obs.data) ** 2).mean()
    loss.backward()

    # Record diagnostics *before* the step, so the gradient corresponds
    # to the parameter values in the history.
    gn = torch.sqrt(model.E.data.grad.pow(2) + model.nu.data.grad.pow(2)).item()
    loss_hist.append(loss.item())
    E_hist.append(model.E.data.item())
    nu_hist.append(model.nu.data.item())
    gradnorm_hist.append(gn)

    optimizer.step()

print(f"final loss = {loss_hist[-1]:.3e}")
print(f"recovered  E  = {model.E.data.item():.4f}  (true {E_true})")
print(f"recovered  nu = {model.nu.data.item():.6f}  (true {nu_true})")

final loss = 4.542e-04
recovered  E  = 199997.4335  (true 200000.0)
recovered  nu = 0.310002  (true 0.31)

Both parameters are recovered to within a small fraction of a percent. With noise-free synthetic data and many random strain directions, the loss landscape here has a unique global minimum at the true values where the loss is exactly zero; the residual error is set by the optimizer’s tolerance rather than the data.

Diagnostics#

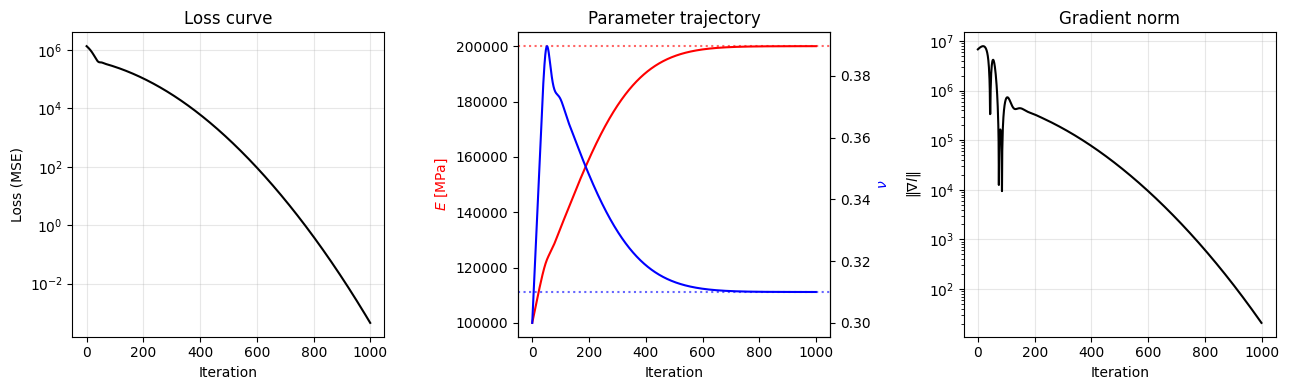

Three plots almost always tell us whether a calibration is healthy.

from matplotlib import pyplot as plt

it = list(range(n_iter))
fig, axes = plt.subplots(1, 3, figsize=(13, 4))

# (1) Loss curve
axes[0].semilogy(it, loss_hist, "k-")
axes[0].set_xlabel("Iteration")
axes[0].set_ylabel("Loss (MSE)")
axes[0].set_title("Loss curve")
axes[0].grid(alpha=0.3)

# (2) Parameter trajectory
axes[1].plot(it, E_hist, "r-", label=r"$E$")
axes[1].axhline(E_true, color="r", ls=":", alpha=0.6)
ax1b = axes[1].twinx()
ax1b.plot(it, nu_hist, "b-", label=r"$\nu$")
ax1b.axhline(nu_true, color="b", ls=":", alpha=0.6)
axes[1].set_xlabel("Iteration")
axes[1].set_ylabel(r"$E$ [MPa]", color="r")
ax1b.set_ylabel(r"$\nu$", color="b")
axes[1].set_title("Parameter trajectory")

# (3) Gradient norm
axes[2].semilogy(it, gradnorm_hist, "k-")
axes[2].set_xlabel("Iteration")
axes[2].set_ylabel(r"$\|\nabla l\|$")
axes[2].set_title("Gradient norm")
axes[2].grid(alpha=0.3)

fig.tight_layout()
plt.show()
../../../../_images/4b2618d1fb2661c5779b23cdb8fdf3f222ab68f0b07a368ff5402fdb723a7f7c.png
