A monolith nonlinear system defined by a Model. More...

Detailed Description

A monolith nonlinear system defined by a Model.

#include <ModelNonlinearSystem.h>

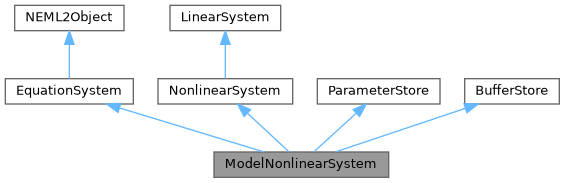

Inheritance diagram for ModelNonlinearSystem:

[legend]

Public Member Functions
	ModelNonlinearSystem (const OptionSet &options)
const std::shared_ptr< Model > &	model_ptr () const
const Model &	model () const
Model &	model ()
void	setup () override
	Setup this object.
void	to (const TensorOptions &) override
	Change the device and dtype of the equation system's internal data.
void	set_u (const SparseTensorList &) override
	Set the unknown u.
void	set_g (const SparseTensorList &) override
	Set the given variables g from the current step.
SparseTensorList	u () const override
	Get the unknown u.
SparseTensorList	g () const override
	Get the given variables g from the current step.
Public Member Functions inherited from EquationSystem
	EquationSystem (const OptionSet &options)
Public Member Functions inherited from NEML2Object
	NEML2Object ()=delete
	NEML2Object (NEML2Object &&)=delete
	NEML2Object (const NEML2Object &)=delete
NEML2Object &	operator= (NEML2Object &&)=delete
NEML2Object &	operator= (const NEML2Object &)=delete
virtual	~NEML2Object ()=default
	NEML2Object (const OptionSet &options)
	Construct a new NEML2Object object.
const OptionSet &	input_options () const
const std::string &	name () const
	A readonly reference to the object's name.
const std::string &	type () const
	A readonly reference to the object's type.
const std::string &	path () const
	A readonly reference to the object's path.
const std::string &	doc () const
	A readonly reference to the object's docstring.
Factory *	factory () const
	Get the factory that created this object.
const Settings &	settings () const
	Settings.
template<typename T = NEML2Object>
const T *	host () const
	Get a readonly pointer to the host.
template<typename T = NEML2Object>
T *	host ()
	Get a writable pointer to the host.
template<typename T>
const T &	resolve_tensor (const std::string &name)
	Resolve a TensorName to a Tensor.
template<class T>
std::shared_ptr< T >	get_object (const std::string &section, const std::string &name)
template<class T = EquationSystem>
std::shared_ptr< T >	get_es (const std::string &name)
	Get an equation system from the factory.
template<class T = Solver>
std::shared_ptr< T >	get_solver (const std::string &name)
	Get a solver from the factory.
template<class T = Data>
std::shared_ptr< T >	get_data (const std::string &name)
	Get a data from the factory.
template<class T = Model>
std::shared_ptr< T >	get_model (const std::string &name)
	Get a model from the factory.
template<class T = Driver>
std::shared_ptr< T >	get_driver (const std::string &name)
	Get a driver from the factory.
template<class T = WorkScheduler>
std::shared_ptr< T >	get_scheduler (const std::string &name)
	Get a scheduler from the factory.
Public Member Functions inherited from NonlinearSystem
void	u_changed () override
	Trigger when unknown variables changed.
	LinearSystem ()=default
	LinearSystem (const LinearSystem &)=default
	LinearSystem (LinearSystem &&) noexcept=default
Public Member Functions inherited from LinearSystem
	LinearSystem ()=default
	LinearSystem (const LinearSystem &)=default
	LinearSystem (LinearSystem &&) noexcept=default
LinearSystem &	operator= (const LinearSystem &)=default
LinearSystem &	operator= (LinearSystem &&) noexcept=default
virtual	~LinearSystem ()=default
virtual void	init ()
std::size_t	m () const
	Number of rows in the matrix.
std::size_t	n () const
	Number of columns in the matrix.
std::size_t	p () const
	Number of columns in the auxiliary matrix.
virtual void	g_changed ()
	Trigger when given variables changed.
SparseTensorList	A ()
	Assemble and return the operator, A.
SparseTensorList	b ()
	Assemble and return the right-hand side, b.
std::tuple< SparseTensorList, SparseTensorList >	A_and_b ()
	Assemble and return the right-hand side and operator.
std::tuple< SparseTensorList, SparseTensorList >	A_and_B ()
	Assemble the auxiliary matrix B = dr/dg along with A.
std::tuple< SparseTensorList, SparseTensorList, SparseTensorList >	A_and_B_and_b ()
	Assemble the auxiliary matrix B = dr/dg along with A and b.
const std::vector< LabeledAxisAccessor > &	umap () const
	Get the ID-to-unknown mapping for assembly.
const std::vector< TensorShape > &	intmd_ulayout () const
	Get the ID-to-unknown-intermediate-shape mapping for assembly.
const std::vector< TensorShape > &	ulayout () const
	Get the ID-to-unknown-base-shape mapping for assembly.
const std::vector< LabeledAxisAccessor > &	gmap () const
	Get the ID-to-prescribed-variable mapping for assembly.
const std::vector< TensorShape > &	intmd_glayout () const
	Get the ID-to-prescribed-variable-intermediate-shape mapping for assembly.
const std::vector< TensorShape > &	glayout () const
	Get the ID-to-prescribed-variable-base-shape mapping for assembly.
const std::vector< LabeledAxisAccessor > &	bmap () const
	Get the ID-to-RHS mapping for assembly.
const std::vector< TensorShape > &	intmd_blayout () const
	Get the ID-to-RHS-intermediate-shape mapping for assembly.
const std::vector< TensorShape > &	blayout () const
	Get the ID-to-RHS-base-shape mapping for assembly.
Public Member Functions inherited from ParameterStore
	ParameterStore (NEML2Object *object)
	ParameterStore (const ParameterStore &)=delete
	ParameterStore (ParameterStore &&)=delete
ParameterStore &	operator= (const ParameterStore &)=delete
ParameterStore &	operator= (ParameterStore &&)=delete
virtual	~ParameterStore ()=default
const std::map< std::string, std::unique_ptr< TensorValueBase > > &	named_parameters () const
std::map< std::string, std::unique_ptr< TensorValueBase > > &	named_parameters ()
const TensorValueBase &	get_parameter (const std::string &name) const
	}@
TensorValueBase &	get_parameter (const std::string &name)
	Get a writable reference of a parameter.
void	set_parameter (const std::string &, const Tensor &)
	Set the value for a parameter.
void	set_parameters (const std::map< std::string, Tensor > &)
	Set values for parameters.
Public Member Functions inherited from BufferStore
	BufferStore (NEML2Object *object)
	BufferStore (const BufferStore &)=delete
	BufferStore (BufferStore &&)=delete
BufferStore &	operator= (const BufferStore &)=delete
BufferStore &	operator= (BufferStore &&)=delete
virtual	~BufferStore ()=default
const std::map< std::string, std::unique_ptr< TensorValueBase > > &	named_buffers () const
std::map< std::string, std::unique_ptr< TensorValueBase > > &	named_buffers ()
const TensorValueBase &	get_buffer (const std::string &name) const
	}@
TensorValueBase &	get_buffer (const std::string &name)
	Get a writable reference of a buffer.

Static Public Member Functions
static OptionSet	expected_options ()
Static Public Member Functions inherited from EquationSystem
static OptionSet	expected_options ()
Static Public Member Functions inherited from NEML2Object
static OptionSet	expected_options ()

Protected Member Functions
std::vector< LabeledAxisAccessor >	setup_umap () override
	Setup the unknown map.
std::vector< TensorShape >	setup_intmd_ulayout () override
	Setup the unknown intermediate layout.
std::vector< TensorShape >	setup_ulayout () override
	Setup the unknown layout.
std::vector< LabeledAxisAccessor >	setup_bmap () override
	Setup the RHS map.
std::vector< TensorShape >	setup_intmd_blayout () override
	Setup the RHS intermediate layout.
std::vector< TensorShape >	setup_blayout () override
	Setup the RHS layout.
std::vector< LabeledAxisAccessor >	setup_gmap () override
	Setup the given variable map.
std::vector< TensorShape >	setup_intmd_glayout () override
	Setup the given variable intermediate layout.
std::vector< TensorShape >	setup_glayout () override
	Setup the given variable base layout.
void	assemble (SparseTensorList A, SparseTensorList B, SparseTensorList *b) override
	Compute the operator and right-hand side.
void	pre_assemble (bool A, bool B, bool b) override
	Callback before assembly to perform.
void	post_assemble (bool A, bool B, bool b) override
	Callback after assembly to perform.
virtual void	send_parameters_to (const TensorOptions &options)
	Send parameters to options.
template<typename T, typename = typename std::enable_if_t<std::is_base_of_v<TensorBase<T>, T>>>
const T &	declare_parameter (const std::string &name, const T &rawval)
	Declare a parameter.
template<typename T, typename = typename std::enable_if_t<std::is_base_of_v<TensorBase<T>, T>>>
const T &	declare_parameter (const std::string &name, const TensorName< T > &tensorname, bool allow_nonlinear)
	Declare a parameter.
template<typename T, typename = typename std::enable_if_t<std::is_base_of_v<TensorBase<T>, T>>>
const T &	declare_parameter (const std::string &name, const std::string &input_option_name, bool allow_nonlinear=false)
	Declare a parameter.
void	assign_parameter_stack (jit::Stack &stack)
	Assign stack to parameters.
jit::Stack	collect_parameter_stack () const
	Collect stack from parameters.
virtual void	send_buffers_to (const TensorOptions &options)
	Send all buffers to `options`.
template<typename T, typename = typename std::enable_if_t<std::is_base_of_v<TensorBase<T>, T>>>
const T &	declare_buffer (const std::string &name, const T &rawval)
	Declare a buffer.
template<typename T, typename = typename std::enable_if_t<std::is_base_of_v<TensorBase<T>, T>>>
const T &	declare_buffer (const std::string &name, const TensorName< T > &tensorname)
	Declare a buffer.
template<typename T, typename = typename std::enable_if_t<std::is_base_of_v<TensorBase<T>, T>>>
const T &	declare_buffer (const std::string &name, const std::string &input_option_name)
	Declare a buffer.
void	assign_buffer_stack (jit::Stack &stack)
	Assign stack to buffers.
jit::Stack	collect_buffer_stack () const
	Collect stack from buffers.

Additional Inherited Members
Protected Attributes inherited from LinearSystem
bool	_A_up_to_date = false
	Flag indicating if the system matrix is up to date. Setters invalidate this.
bool	_B_up_to_date = false
	Flag indicating if the auxiliary matrix is up to date. Setters invalidate this.
bool	_b_up_to_date = false
	Flag indicating if the system RHS is up to date. Setters invalidate this.
std::vector< LabeledAxisAccessor >	_umap
	The ID-to-unknown mapping.
std::optional< std::vector< TensorShape > >	_intmd_ulayout
	ID-to-unknown intermediate shape mapping.
std::vector< TensorShape >	_ulayout
	ID-to-unknown base shape mapping.
std::vector< LabeledAxisAccessor >	_gmap
	The ID-to-given-variable mapping.
std::optional< std::vector< TensorShape > >	_intmd_glayout
	ID-to-given intermediate shape mapping.
std::vector< TensorShape >	_glayout
	ID-to-given base shape mapping.
std::vector< LabeledAxisAccessor >	_bmap
	The ID-to-RHS mapping.
std::optional< std::vector< TensorShape > >	_intmd_blayout
	ID-to-RHS intermediate shape mapping.
std::vector< TensorShape >	_blayout
	ID-to-RHS shape mapping.

Constructor & Destructor Documentation

◆ ModelNonlinearSystem()

ModelNonlinearSystem ( const OptionSet & options )

Member Function Documentation

◆ assemble()

void assemble	(	SparseTensorList *	A,
		SparseTensorList *	B,
		SparseTensorList *	b )

overrideprotectedvirtual

Compute the operator and right-hand side.

Parameters

A	Pointer to the operator matrix – nullptr if not requested
B	Pointer to the auxiliary matrix – nullptr if not requested
b	Pointer to the RHS vector – nullptr if not requested

Implements LinearSystem.

◆ expected_options()

OptionSet expected_options ( )

static

◆ g()

SparseTensorList g ( ) const

overridevirtual

Get the given variables g from the current step.

Implements LinearSystem.

◆ model() [1/2]

Model & model ( )

inline

◆ model() [2/2]

const Model & model ( ) const

inline

◆ model_ptr()

const std::shared_ptr< Model > & model_ptr ( ) const

inline

◆ post_assemble()

void post_assemble	(	bool	A,
		bool	B,
		bool	b )

overrideprotectedvirtual

Callback after assembly to perform.

This is useful, for example, to collect information that isn't available after the first assembly

Parameters

A	Whether the operator matrix was assembled
B	Whether the auxiliary matrix was assembled
b	Whether the RHS vector was assembled

Reimplemented from LinearSystem.

◆ pre_assemble()

void pre_assemble	(	bool	A,
		bool	B,
		bool	b )

overrideprotectedvirtual

Callback before assembly to perform.

This is useful, for example, to clear obsolete data structures

Parameters

A	Whether the operator matrix was assembled
B	Whether the auxiliary matrix was assembled
b	Whether the RHS vector was assembled

Reimplemented from LinearSystem.

◆ set_g()

void set_g ( const SparseTensorList & )

overridevirtual

Set the given variables g from the current step.

Implements LinearSystem.

◆ set_u()

void set_u ( const SparseTensorList & )

overridevirtual

Set the unknown u.

Implements LinearSystem.

◆ setup()

void setup ( )

overridevirtual

Setup this object.

This method is called automatically if you use the Factory method get_object or get_object, right after construction. This serves as the entry point for things that are not convenient/possible to do at construction time, but are necessary before this object can be used (by others).

Reimplemented from NEML2Object.

◆ setup_blayout()

std::vector< TensorShape > setup_blayout ( )

overrideprotectedvirtual

Setup the RHS layout.

Implements LinearSystem.

◆ setup_bmap()

std::vector< LabeledAxisAccessor > setup_bmap ( )

overrideprotectedvirtual

Setup the RHS map.

Implements LinearSystem.

◆ setup_glayout()

std::vector< TensorShape > setup_glayout ( )

overrideprotectedvirtual

Setup the given variable base layout.

Implements LinearSystem.

◆ setup_gmap()

std::vector< LabeledAxisAccessor > setup_gmap ( )

overrideprotectedvirtual

Setup the given variable map.

Implements LinearSystem.

◆ setup_intmd_blayout()

std::vector< TensorShape > setup_intmd_blayout ( )

overrideprotectedvirtual

Setup the RHS intermediate layout.

Implements LinearSystem.

◆ setup_intmd_glayout()

std::vector< TensorShape > setup_intmd_glayout ( )

overrideprotectedvirtual

Setup the given variable intermediate layout.

Implements LinearSystem.

◆ setup_intmd_ulayout()

std::vector< TensorShape > setup_intmd_ulayout ( )

overrideprotectedvirtual

Setup the unknown intermediate layout.

Implements LinearSystem.

◆ setup_ulayout()

std::vector< TensorShape > setup_ulayout ( )

overrideprotectedvirtual

Setup the unknown layout.

Implements LinearSystem.

◆ setup_umap()

std::vector< LabeledAxisAccessor > setup_umap ( )

overrideprotectedvirtual

Setup the unknown map.

Implements LinearSystem.

◆ to()

void to ( const TensorOptions & )

overridevirtual

Change the device and dtype of the equation system's internal data.

Reimplemented from EquationSystem.

◆ u()

SparseTensorList u ( ) const

overridevirtual

Get the unknown u.

Implements LinearSystem.

Detailed Description

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ ModelNonlinearSystem()

Member Function Documentation

◆ assemble()

◆ expected_options()

◆ g()

◆ model() [1/2]

◆ model() [2/2]

◆ model_ptr()

◆ post_assemble()

◆ pre_assemble()

◆ set_g()

◆ set_u()

◆ setup()

◆ setup_blayout()

◆ setup_bmap()

◆ setup_glayout()

◆ setup_gmap()

◆ setup_intmd_blayout()

◆ setup_intmd_glayout()

◆ setup_intmd_ulayout()

◆ setup_ulayout()

◆ setup_umap()

◆ to()

◆ u()
