Base class of variable. More...

Detailed Description

Base class of variable.

Specific implementations are defined by the derived class Variable<T> where we rely on polymorphism so that we can store different types of variables in the same container.

#include <Variable.h>

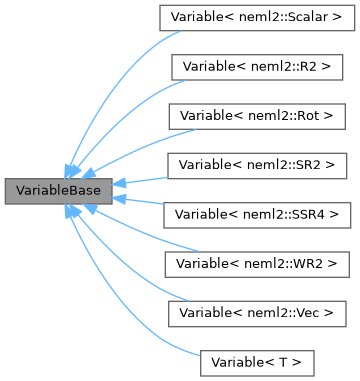

Inheritance diagram for VariableBase:

[legend]

Public Member Functions
	VariableBase ()=default

	VariableBase (const VariableBase &)=delete

	VariableBase (VariableBase &&)=delete

VariableBase &	operator= (const VariableBase &)=delete

VariableBase &	operator= (VariableBase &&)=delete

virtual	~VariableBase ()=default

	VariableBase (VariableName name_in, Model *owner, TensorShapeRef list_shape)

const VariableName &	name () const
	Name of this variable.

virtual TensorType	type () const =0
	Variable tensor type.

virtual std::unique_ptr< VariableBase >	clone (const VariableName &name={}, Model *owner=nullptr) const =0
	Clone this variable.

virtual void	ref (const VariableBase &other, bool ref_is_mutable=false)=0
	Reference another variable.

virtual const VariableBase *	ref () const =0
	Get the referencing variable (returns this if this is a storing variable)

virtual bool	owning () const =0
	Check if this is an owning variable.

virtual void	zero (const TensorOptions &options)=0
	Set the variable value to zero.

virtual void	set (const Tensor &val)=0
	Set the variable value.

virtual void	set (const ATensor &val, bool force=false)=0

virtual Tensor	get () const =0
	Get the variable value (with flattened base dimensions, i.e., for assembly purposes)

virtual Tensor	tensor () const =0
	Get the variable value.

bool	requires_grad () const
	Check if this variable is part of the AD function graph.

virtual void	requires_grad_ (bool req=true)=0
	Mark this variable as a leaf variable in tracing function graph for AD.

virtual void	operator= (const Tensor &val)=0
	Assignment operator.

Derivative	d (const VariableBase &var)
	Wrapper for assigning partial derivative.

Derivative	d (const VariableBase &var1, const VariableBase &var2)
	Wrapper for assigning second partial derivative.

const ValueMap &	derivatives () const
	Partial derivatives.

ValueMap &	derivatives ()

const DerivMap &	second_derivatives () const
	Partial second derivatives.

DerivMap &	second_derivatives ()

virtual void	clear ()
	Clear the variable value and derivatives.

void	clear_derivatives ()
	Clear only the derivatives.

void	apply_chain_rule (const DependencyResolver< Model, VariableName > &)
	Apply first order chain rule.

void	apply_second_order_chain_rule (const DependencyResolver< Model, VariableName > &)
	Apply second order chain rule.


const Model &	owner () const

Model &	owner ()

Subaxis
bool	is_state () const

bool	is_old_state () const

bool	is_force () const

bool	is_old_force () const

bool	is_residual () const

bool	is_parameter () const

bool	is_solve_dependent () const

bool	is_dependent () const
	Check if the derivative with respect to this variable should be evaluated.

Tensor information
TensorOptions	options () const

Dtype	scalar_type () const
	Scalar type.

Device	device () const
	Device.

Size	dim () const
	Number of tensor dimensions.

TensorShapeRef	sizes () const
	Tensor shape.

Size	size (Size dim) const
	Size of a dimension.

bool	batched () const
	Whether the tensor is batched.

Size	batch_dim () const
	Return the number of batch dimensions.

Size	list_dim () const
	Return the number of list dimensions.

Size	base_dim () const
	Return the number of base dimensions.

TraceableTensorShape	batch_sizes () const
	Return the batch shape.

TensorShapeRef	list_sizes () const
	Return the list shape.

virtual TensorShapeRef	base_sizes () const =0
	Return the base shape.

TraceableSize	batch_size (Size dim) const
	Return the size of a batch axis.

Size	base_size (Size dim) const
	Return the size of a base axis.

Size	list_size (Size dim) const
	Return the size of a list axis.

Size	base_storage () const
	Base storage of the variable.

Size	assembly_storage () const
	Assembly storage of the variable.


void	request_AD (const VariableBase &u)

void	request_AD (const std::vector< const VariableBase * > &us)


void	request_AD (const VariableBase &u1, const VariableBase &u2)

void	request_AD (const std::vector< const VariableBase * > &u1s, const std::vector< const VariableBase * > &u2s)

Public Attributes
const VariableName	_name = {}
	Name of the variable.

Model *const	_owner = nullptr
	The model which declared this variable.

Constructor & Destructor Documentation

◆ VariableBase() [1/4]

VariableBase ( )

default

◆ VariableBase() [2/4]

VariableBase ( const VariableBase & )

delete

◆ VariableBase() [3/4]

VariableBase ( VariableBase && )

delete

◆ ~VariableBase()

virtual ~VariableBase ( )

virtualdefault

◆ VariableBase() [4/4]

VariableBase	(	VariableName	name_in,
		Model *	owner,
		TensorShapeRef	list_shape )

Member Function Documentation

◆ apply_chain_rule()

void apply_chain_rule ( const DependencyResolver< Model, VariableName > & dep )

Apply first order chain rule.

◆ apply_second_order_chain_rule()

void apply_second_order_chain_rule ( const DependencyResolver< Model, VariableName > & dep )

Apply second order chain rule.

◆ assembly_storage()

Size assembly_storage ( ) const

Assembly storage of the variable.

◆ base_dim()

Size base_dim ( ) const

Return the number of base dimensions.

◆ base_size()

Size base_size ( Size dim ) const

Return the size of a base axis.

◆ base_sizes()

virtual TensorShapeRef base_sizes ( ) const

pure virtual

Return the base shape.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ base_storage()

Size base_storage ( ) const

Base storage of the variable.

◆ batch_dim()

Size batch_dim ( ) const

Return the number of batch dimensions.

◆ batch_size()

TraceableSize batch_size ( Size dim ) const

Return the size of a batch axis.

◆ batch_sizes()

TraceableTensorShape batch_sizes ( ) const

Return the batch shape.

◆ batched()

bool batched ( ) const

Whether the tensor is batched.

◆ clear()

void clear ( )

virtual

Clear the variable value and derivatives.

Reimplemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ clear_derivatives()

void clear_derivatives ( )

Clear only the derivatives.

◆ clone()

virtual std::unique_ptr< VariableBase > clone	(	const VariableName &	name = {},
		Model *	owner = nullptr ) const

pure virtual

Clone this variable.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ d() [1/2]

Derivative d ( const VariableBase & var )

Wrapper for assigning partial derivative.

◆ d() [2/2]

Derivative d	(	const VariableBase &	var1,
		const VariableBase &	var2 )

Wrapper for assigning second partial derivative.

◆ derivatives() [1/2]

ValueMap & derivatives ( )

inline

◆ derivatives() [2/2]

const ValueMap & derivatives ( ) const

inline

Partial derivatives.

◆ device()

Device device ( ) const

Device.

◆ dim()

Size dim ( ) const

Number of tensor dimensions.

◆ get()

virtual Tensor get ( ) const

pure virtual

Get the variable value (with flattened base dimensions, i.e., for assembly purposes)

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ is_dependent()

bool is_dependent ( ) const

Check if the derivative with respect to this variable should be evaluated.

◆ is_force()

bool is_force ( ) const

◆ is_old_force()

bool is_old_force ( ) const

◆ is_old_state()

bool is_old_state ( ) const

◆ is_parameter()

bool is_parameter ( ) const

◆ is_residual()

bool is_residual ( ) const

◆ is_solve_dependent()

bool is_solve_dependent ( ) const

◆ is_state()

bool is_state ( ) const

◆ list_dim()

Size list_dim ( ) const

Return the number of list dimensions.

◆ list_size()

Size list_size ( Size dim ) const

Return the size of a list axis.

◆ list_sizes()

TensorShapeRef list_sizes ( ) const

Return the list shape.

◆ name()

const VariableName & name ( ) const

inline

Name of this variable.

◆ operator=() [1/3]

virtual void operator= ( const Tensor & val )

pure virtual

Assignment operator.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ operator=() [2/3]

VariableBase & operator= ( const VariableBase & )

delete

◆ operator=() [3/3]

VariableBase & operator= ( VariableBase && )

delete

◆ options()

TensorOptions options ( ) const

Tensor options

◆ owner() [1/2]

Model & owner ( )

◆ owner() [2/2]

const Model & owner ( ) const

The Model who declared this variable

◆ owning()

virtual bool owning ( ) const

pure virtual

Check if this is an owning variable.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ ref() [1/2]

virtual const VariableBase * ref ( ) const

pure virtual

Get the referencing variable (returns this if this is a storing variable)

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ ref() [2/2]

virtual void ref	(	const VariableBase &	other,
		bool	ref_is_mutable = false )

pure virtual

Reference another variable.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ request_AD() [1/4]

void request_AD	(	const std::vector< const VariableBase * > &	u1s,
		const std::vector< const VariableBase * > &	u2s )

◆ request_AD() [2/4]

void request_AD ( const std::vector< const VariableBase * > & us )

◆ request_AD() [3/4]

void request_AD ( const VariableBase & u )

Request to use AD to calculate the derivative of this variable with respect to another variable

◆ request_AD() [4/4]

void request_AD	(	const VariableBase &	u1,
		const VariableBase &	u2 )

Request to use AD to calculate the second derivative of this variable with respect to two other variables

◆ requires_grad()

bool requires_grad ( ) const

Check if this variable is part of the AD function graph.

◆ requires_grad_()

virtual void requires_grad_ ( bool req = true )

pure virtual

Mark this variable as a leaf variable in tracing function graph for AD.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ scalar_type()

Dtype scalar_type ( ) const

Scalar type.

◆ second_derivatives() [1/2]

DerivMap & second_derivatives ( )

inline

◆ second_derivatives() [2/2]

const DerivMap & second_derivatives ( ) const

inline

Partial second derivatives.

◆ set() [1/2]

virtual void set	(	const ATensor &	val,
		bool	force = false )

pure virtual

Set the variable value from a ATensor (with inferred batch shape) If force is true, the value is set even if the variable is a reference

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ set() [2/2]

virtual void set ( const Tensor & val )

pure virtual

Set the variable value.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ size()

Size size ( Size dim ) const

Size of a dimension.

◆ sizes()

TensorShapeRef sizes ( ) const

Tensor shape.

◆ tensor()

virtual Tensor tensor ( ) const

pure virtual

Get the variable value.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ type()

virtual TensorType type ( ) const

pure virtual

Variable tensor type.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

◆ zero()

virtual void zero ( const TensorOptions & options )

pure virtual

Set the variable value to zero.

Implemented in Variable< T >, Variable< neml2::R2 >, Variable< neml2::Rot >, Variable< neml2::Scalar >, Variable< neml2::SR2 >, Variable< neml2::SSR4 >, Variable< neml2::Vec >, and Variable< neml2::WR2 >.

Member Data Documentation

◆ _name

const VariableName _name = {}

Name of the variable.

◆ _owner

Model* const _owner = nullptr

The model which declared this variable.

Detailed Description

Public Member Functions

Public Attributes

Constructor & Destructor Documentation

◆ VariableBase() [1/4]

◆ VariableBase() [2/4]

◆ VariableBase() [3/4]

◆ ~VariableBase()

◆ VariableBase() [4/4]

Member Function Documentation

◆ apply_chain_rule()

◆ apply_second_order_chain_rule()

◆ assembly_storage()

◆ base_dim()

◆ base_size()

◆ base_sizes()

◆ base_storage()

◆ batch_dim()

◆ batch_size()

◆ batch_sizes()

◆ batched()

◆ clear()

◆ clear_derivatives()

◆ clone()

◆ d() [1/2]

◆ d() [2/2]

◆ derivatives() [1/2]

◆ derivatives() [2/2]

◆ device()

◆ dim()

◆ get()

◆ is_dependent()

◆ is_force()

◆ is_old_force()

◆ is_old_state()

◆ is_parameter()

◆ is_residual()

◆ is_solve_dependent()

◆ is_state()

◆ list_dim()

◆ list_size()

◆ list_sizes()

◆ name()

◆ operator=() [1/3]

◆ operator=() [2/3]

◆ operator=() [3/3]

◆ options()

◆ owner() [1/2]

◆ owner() [2/2]

◆ owning()

◆ ref() [1/2]

◆ ref() [2/2]

◆ request_AD() [1/4]

◆ request_AD() [2/4]

◆ request_AD() [3/4]

◆ request_AD() [4/4]

◆ requires_grad()

◆ requires_grad_()

◆ scalar_type()

◆ second_derivatives() [1/2]

◆ second_derivatives() [2/2]

◆ set() [1/2]

◆ set() [2/2]

◆ size()

◆ sizes()

◆ tensor()

◆ type()

◆ zero()

Member Data Documentation

◆ _name

◆ _owner
